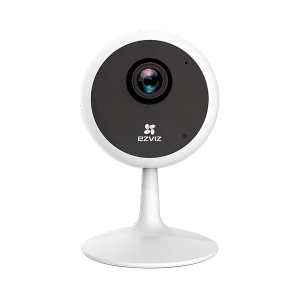

Thông số nổi bật camera WiFi 2MP ( CS-C1C-D0-1D2WFR )
Thông số kỹ thuật camera C1C 2.0 Megapixel
• Độ phân giải 1920x1080 @ 25fps
• Ống kính 2.8mm@ F2.2, 108°(Chéo), 91° (Ngang),50°(Dọc)
• Hỗ trợ 3D DNR , ICR
• Chuấn nén H.265/H.264
• Phát hiện chuyển động thông minh
• Hỗ trợ khe cắm thẻ nhớ đến 256GB
• Tích hợp Micro và Loa - Hỗ trợ đàm thoại 2 chiều với chất lượng âm thanh trung thực
• Hồng ngoại 10m
• Hỗ trợ WiFi , IEEE802.11b, 802.11g, 802.11n , tần số 2.4GHz
• Hỗ trợ WiFi + cài đặt WiFi thông minh với phần mềm EZVIZ - quá trình cài đặt chỉ mất vài phút với người lần đầu sử dụng
Thông số kỹ thuật:
| Model Parameters | ||
|---|---|---|
| Name | C1C 720p | C1C 1080p |
| Model | CS-C1C-D0-1D1WFR | CS-C1C-D0-1D2WFR |
| Camera | ||
| Image Sensor | 1/4" Progressive Scan CMOS | 1/2.9" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter | Self-adaptive shutter |
| Lens | 2.8mm, view angle:92° (Horizontal), 110°(Diagonal) | 2.8mm, view angle:106° (Horizontal), 130°(Diagonal) |
| Lens Mount | M12 | M12 |
| Day & Night | IR-cut filter with auto-switching | IR-cut filter with auto-switching |
| DNR | 3D DNR | 3D DNR |
| Image | ||
| Max. Resolution | 1280 x 720 | 1920 x 1080 |
| Frame Rate | Max. 25fps; Self-adaptive during network transmission | Max. 20fps; Self-adaptive during network transmission |
| Compression | ||
| Video Compression | H.264 | H.264 |
| H.264 Type | Main profile | Main profile |
| Video Bit Rate | HD; Standard. Adaptive bit rate | Full HD; HD; Standard. Adaptive bit rate |
| Auto Bit Rate | Self-adaptive | Self-adaptive |
| Max. Bitrate | 2Mbps | 2Mbps |
| Network | ||
| Smart Alarm | Motion detection | Motion detection |
| Wi-Fi Pairing | AP pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol | EZVIZ cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Interface | ||
| Storage | Support Micro SD card (Max. 256G) | Support Micro SD card (Max. 256G) |
| Power | Micro USB | Micro USB |
| Wi-Fi | ||
| Standard | IEEE802.11b, 802.11g, 802.11n | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| General | ||
| Requirements | - 10 - 45°C (14 - 113°F) Humidity 95% or less (non-condensing) | - 10 - 45°C (14 - 113°F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V±10% | DC 5V±10% |
| Power Consumption | Max. 4.0W | Max. 4.0W |
| IR Range | Max. 12 meters | Max. 12 meters |
| Product Dimensions | 64mm x 64mm x 103mm | 64mm x 64mm x 103mm |
| Packaging Dimensions | 123mm x 79mm x 125.5mm | 123mm x 79mm x 125.5mm |
| Weight | 96g | 96g |
